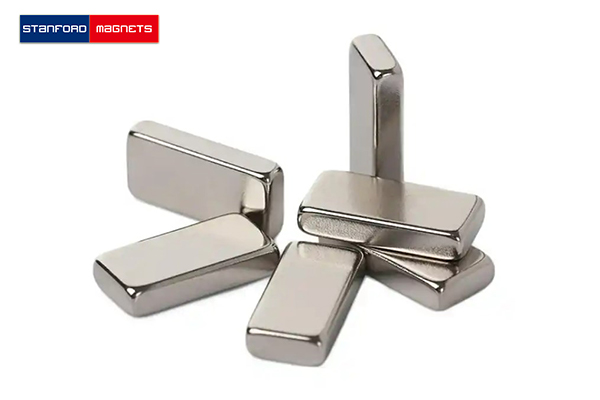

Neodymium Bar Magnets

Neodymium Bar Magnets

Neodymium Bar Magnets is a special shape of block neodymium magnets; the height is far larger than length and width. The power of Neodymium Bar Magnets is very strong when contacting another magnet or plain iron, very difficult to pull away (easy to slide however).



Magnets Grade Available:

1. Magnets N-(N35, N38, N40, N42, N45, N48, N50), Max working Tempt 80°C;
2. Magnets M-(35M, 38M, 40M, 42M, 45M, 48M), Max working Tempt 100°C;
3. Magnets H-(35H, 38H, 40H, 42H, 45H), Max working Tempt 120°C ; 4. Magnets SH-(30SH, 33SH, 35SH, 38SH, 40SH, 42SH), Max working Tempt 150°C;
5. Magnets UH-(28UH, 30UH, 33UH, 35UH, 38UH), Max working Tempt 180°C;
6. Magnets EH-(28EH, 30EH, 30EH, 33EH, 35EH) Max working Tempt 200°C;
7. Magnets AH-(30AH, 33AH) Max working Tempt 230°C.



Neodymium Bar Magnets applications:

Loudspeakers, motor assemblies, windmill, Home appliance, acoustics, communication equipment, toy, car, servomotor, step motor, DC motor and linear motor, microphones.

Specifications for your reference:

Item Thickness(Inch) Width (Inch) Length (Inch) Grade
NBa-1 1/4 (0.25) 1/4 (0.25) 1 (1.00) N42
NBa-2 1/2 (0.5) 1/2 (0.5) 1 (1.00) N42
NBa-3 1/4 (0.25) 1/4 (0.25) 5/4 (1.25) N42
NBa-4 1/2 (0.5) 1/2 (0.5) 5/4 (1.25) N42
NBa-5 1/4 (0.25) 1/4 (0.25) 3/2 (1.50) N42
NBa-6 1/2 (0.5) 1/2 (0.5) 3/2 (1.50) N42
NBa-7 1/4 (0.25) 1/4 (0.25) 7/4 (1.75) N42
NBa-8 1/2 (0.5) 1/2 (0.5) 7/4 (1.75) N42
NBa-9 1/4 (0.25) 1/4 (0.25) 2 (2.00) N42
NBa-10 1/2 (0.5) 1/2 (0.5) 2 (2.00) N42
